Special Discount 2025 Sinoboom AB15J Articulated Boom Lift - Sharjah

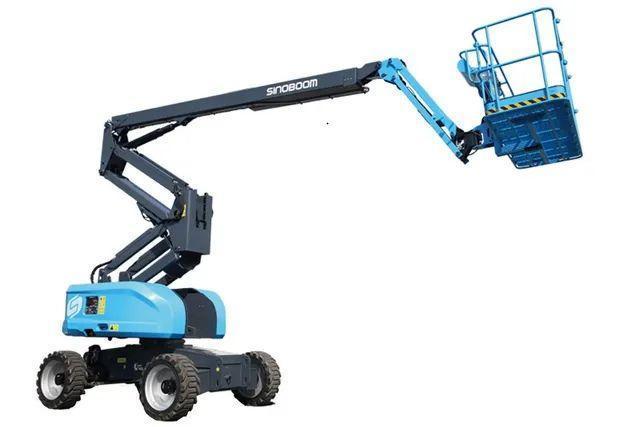

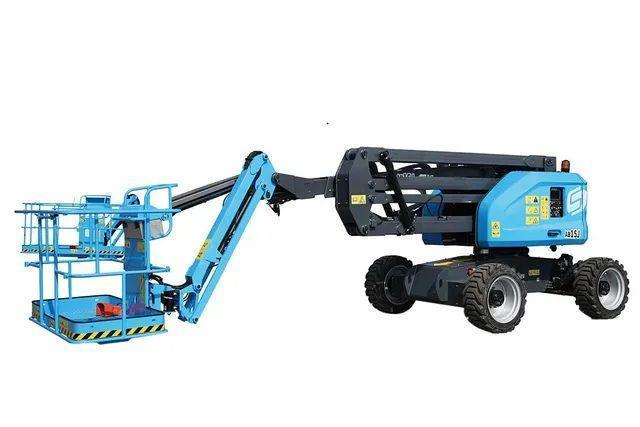

Engineered for performance and precision, the Sinoboom AB15J articulating boom lift delivers a maximum working height of 16.7 meters. Its compact width and zero tail swing design allow it to operate efficiently in narrow or restricted spaces. The platform elevation can be controlled independently of the secondary arm, simplifying adjustments. Thanks to a user-friendly linkage mechanism and hydraulic leveling, the machine maintains dependable operation. Operators benefit from three joysticks with variable proportional control for accurate, responsive movement. Suitable for indoor and outdoor use, the AB15J excels in high-reach applications across construction, maintenance, and facility management.

Highlights
Ultra-Compact Wheelbase for Tight Spaces
Fast, Responsive Height Adjustments
Reliable for Continuous Lifting Operations

Technical specification
Reference Number: AMH209
Operating weight (kg): 7,080 Kg
Engine Output: 36 kW
Max Number of Operators: 2
Working Height: 16.7 m
Platform Capacity: 250 kg
Max Horizontal Extension: 8.5 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 355°/Non-Continuous
Platform Rotation: 160°
Gradeability: 40%

Features
Narrow width with zero tail sweep
Oscillating function
7-in display screen
4WD× 2WS
Proportional control with 3 joysticks
Automotive-grade sleeves for all pipes
Hydraulic platform leveling
Weighing system

Price: AED 203000
