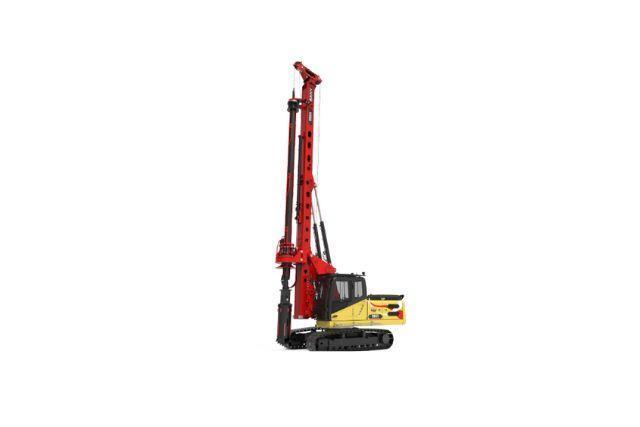

Sany 2025 SR65-C10 Rotary Drilling Rig | High Efficiency and Durability - Abu Dhabi

Features
These versatile rigs are widely used in civil engineering for small-diameter, deep borehole projects. They boast fast hoisting speeds and excellent borehole verticality, contributing to greater operational efficiency.
The rig’s unique telescoping chassis design and roller-type large slewing bearing ensure exceptional stability during drilling.
Powered by a large-displacement EFI engine imported for reliable power, the machine uses power optimization technology to dynamically manage power, resulting in better fuel efficiency and energy savings.

Parameters
Main Chassis
Base Engine: ISUZU 4JJ1
Engine Power: 84/2200kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~40rpm
Rated Output Torque: 70kN·m
Pile
Max. Pile Diameter: 1100mm
Max. Pile Depth: 27/20m
Crowd System
Crowd Force: 110kN
Stroke: 3000mm
Line Pull: 120kN
Overall Machine
Overall Height: 12765/8110mm
Operating Weight: 23T
Transport Width: 2700mm
Transport Height: 3410mm
Main Winch
Lifting Capacity: 90kN
Max. Line Speed: 80m/min
Rope Diameter: 20mm

Price: AED 679,000
Request for quote: +971525384269
